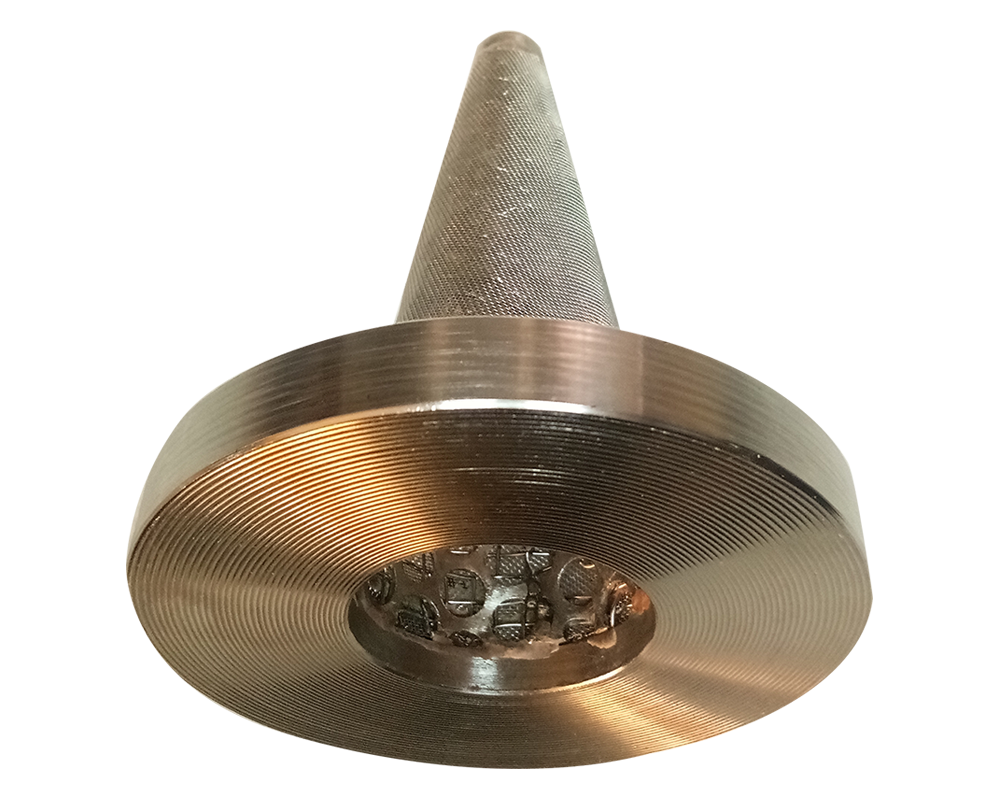

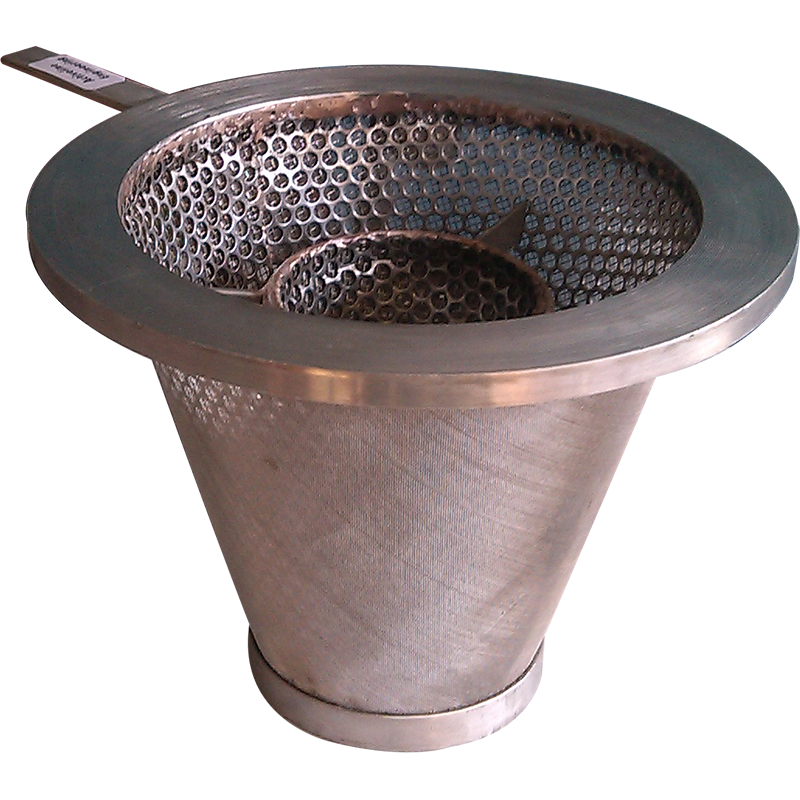

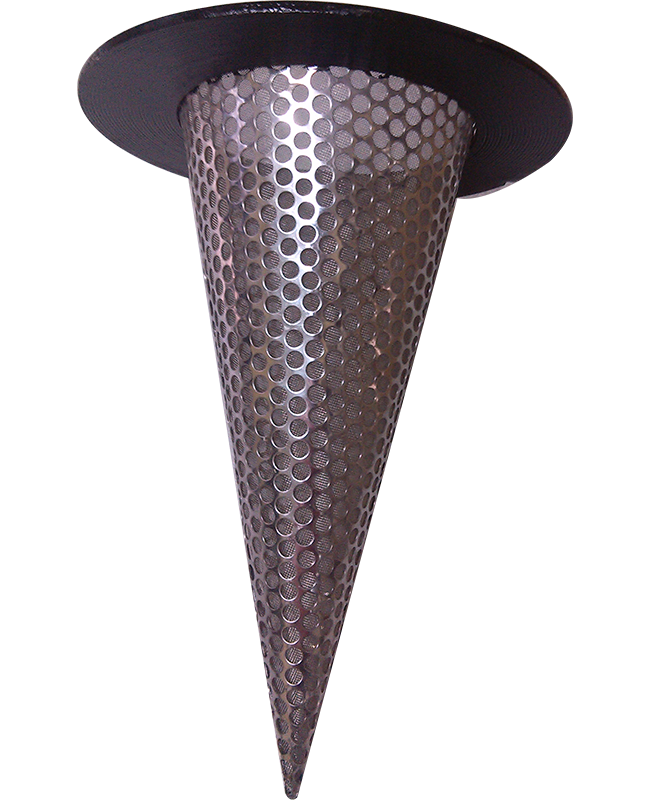

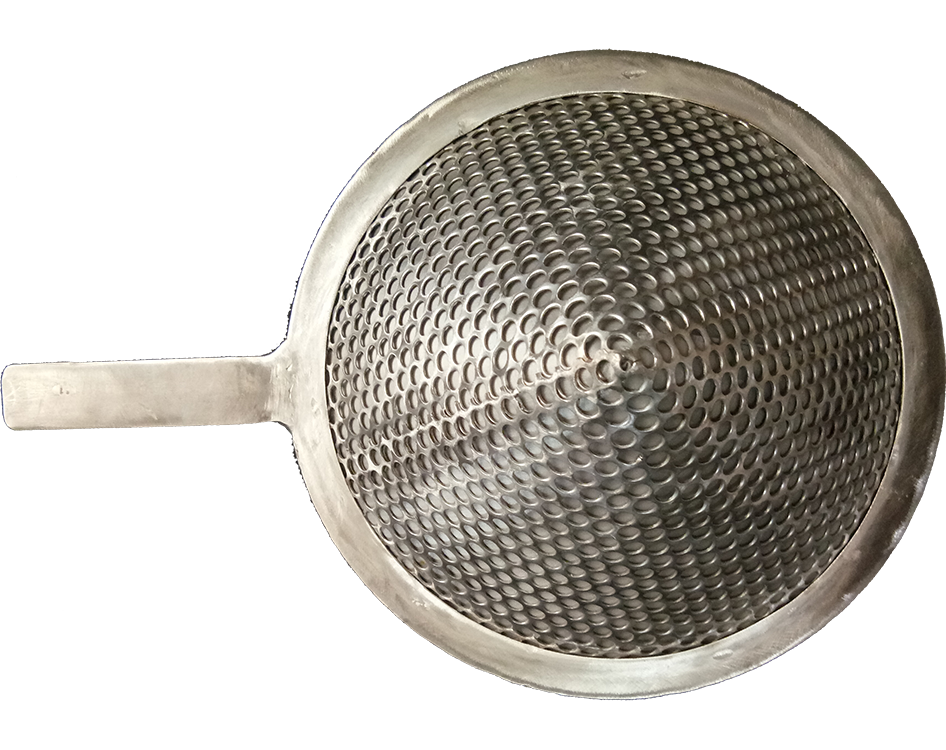

Conical Strainer / Filter
Welded design, Strainer / Filter with Mesh, Install between Standard Flange According to – 150# to HigherActiveline Conical / Temporary Strainers are designed for temporary or short periods of operation, for example, during commissioning and initial start up periods of new or reconditioned process lines to remove any course debris such as rags, welding rods, pipe scale, rust etc, accidentally or unavoidably present within a system. After a nominal period of operation they are usually replaced with a permanent strainer of a finer retention
Applications
Based designed for remove foreign matter from pipe lines and provides protection for pumps, meters, valves, and other similar mechanical equipment
Design Features
- Protection pipe systems, Clean liquid, Viscous and Gaseous Media
- temporary protection during commissioning of industrial plants
- permanent protection downstream valves and pipes
- long life time and low pressure lost
- incident flow from inside to outside
- customized overall length and mesh size
Optional
Incident flow from outside to inside, individual design / perforated sheets, material thickness
Physical Characteristics
- Line size
- Types of piping connections (clamped, bevel seat, I-line, or other)
- Construction materials
- Gasket materials
- Required Particle, Mesh, Hole, or Slot size in the Strainer / Filter element
Design Considerations
- What fluid is being processed?
- Viscosity
- Specific gravity
- Operating temperature and pressure
- Maximum permissible pressure drop
- Percentage of solids
