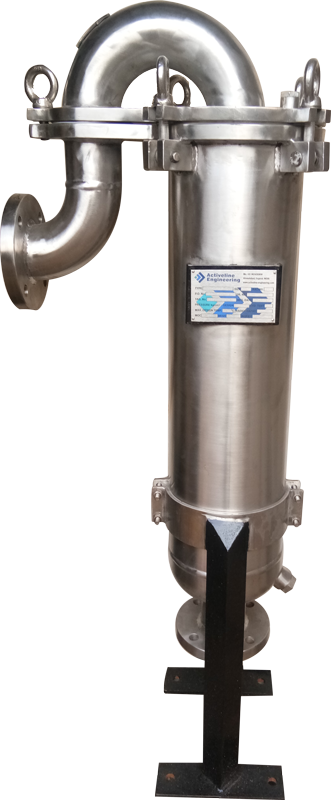

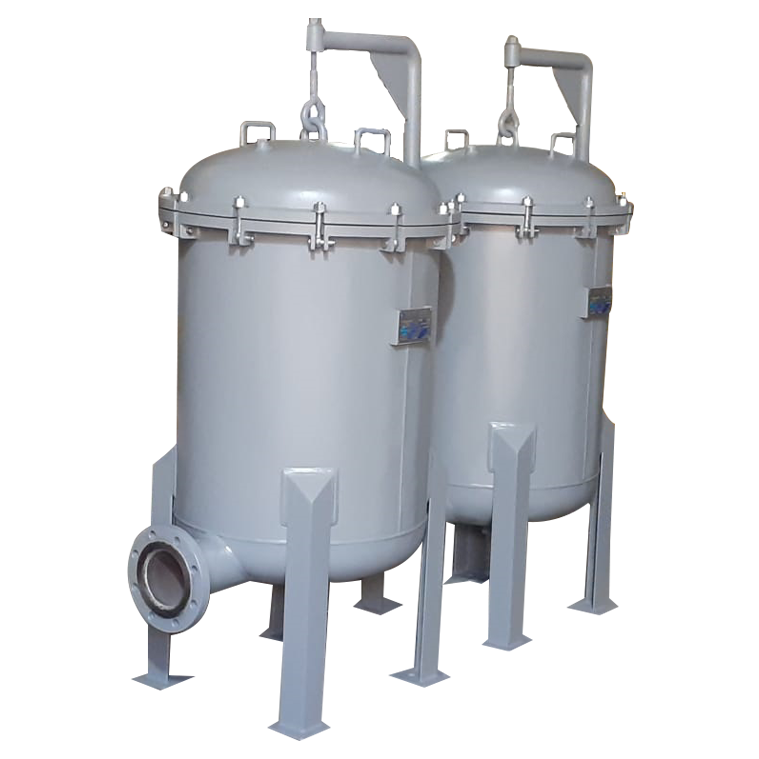

Bag Filter

Activeline Bag filters are used extensively in the chemical process industries. They accommodate a wide range of flow rates and are available in nearly any material of construction to withstand chemical attack, high/low temperature, and extreme pressures.

Applications

Bag Filters Systems Are Applied In Various Industries Solutions. Treated Liquids Include: Milk Products, Paint, Lime, Beer, Chemicals, Mineral Water, Hot Solvent, Latex, Inks, Sugar Water, Juice and Many More.

Design Features

• Small probability for side-bag leakage , which effectively guarantee the filtering quality.
• Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost and obvious energy saving .
• Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.
• Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.
• Based on the working principle and structure of Bag type filtering system, which is convenient to replace the filter bag and without cleaning, and time saving and labor saving.
• Filtration bag could be use repeated after cleaning to save cost.

Optional

Special Material (Monel, Hastelloy, Duplex & Other), Quick open cover without tools, Pedestal, Supporting bracket, mounted valves, Heating Jacket…

Mounted

Bag Dimensions:-

Ø 4" X 10" Long Filter Bag
Ø 4" X 17" Long Filter Bag
Ø 7" X 17" Long Filter Bag
Ø 7" X 32" Long Filter Bag

Security and Monitoring of the Media :-
Magnet Bars, Differential Pressure Display, Analogue / Digital Thermometers

Physical Characteristics

• Line size
• Types of piping connections (clamped, bevel seat, I-line, or other)
• Construction materials
• Gasket materials
• Required Particle, Mesh, Hole, or Slot size in the Strainer / Filter element

Design Considerations

• What fluid is being processed?
• Viscosity
• Specific gravity
• Operating temperature and pressure
• Maximum permissible pressure drop
• Percentage of solids
