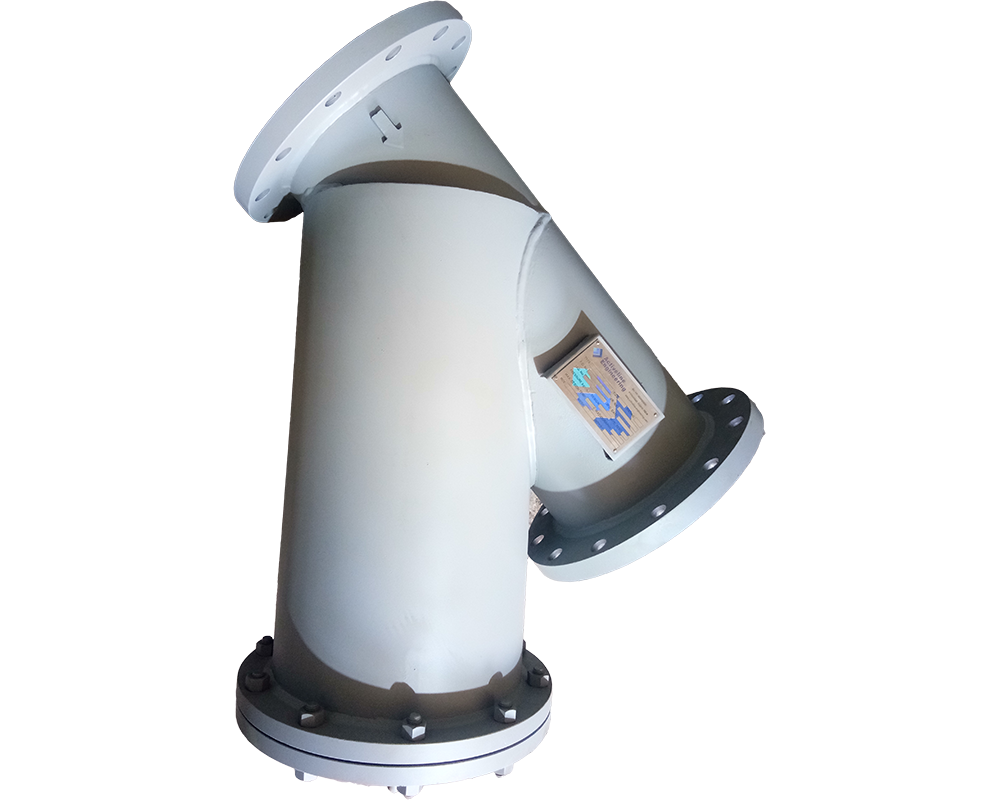

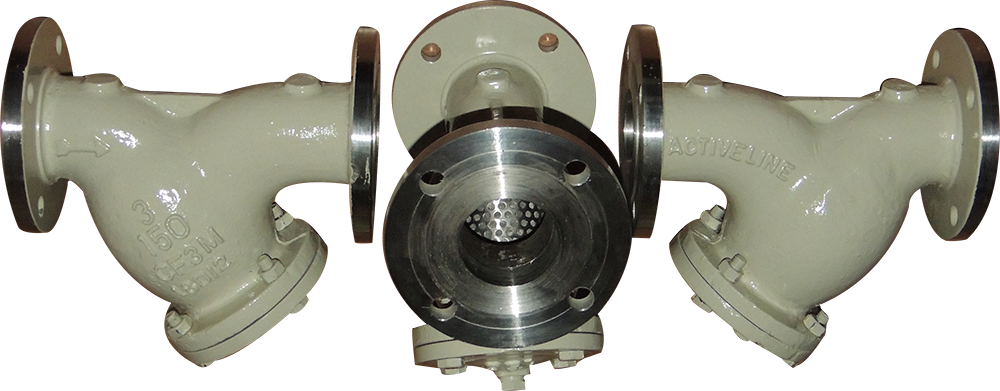

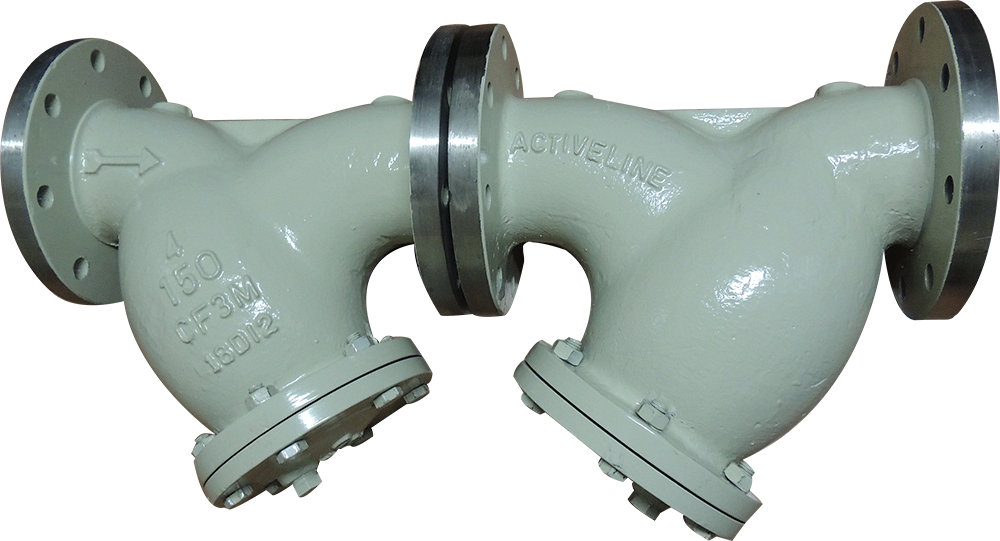

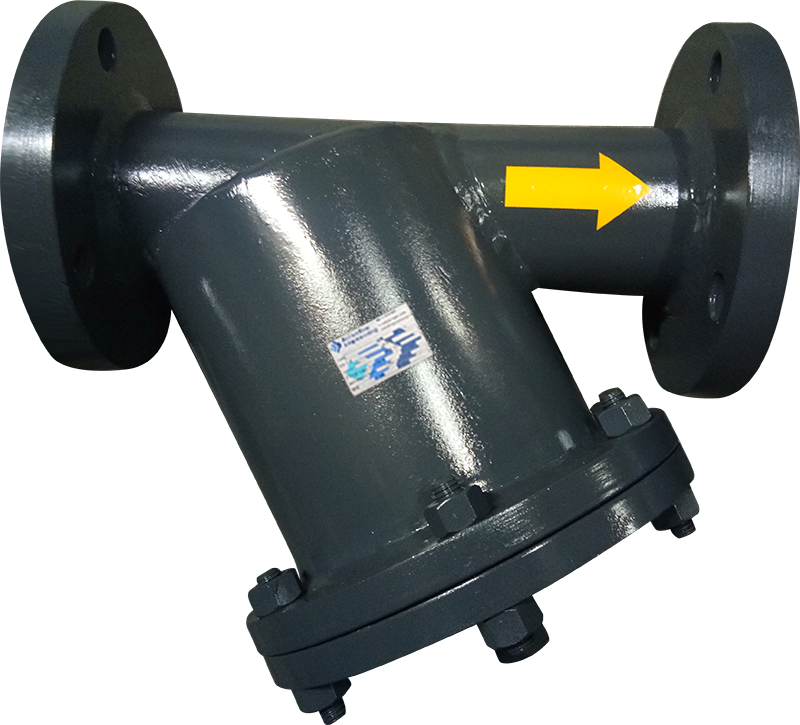

Y-Type Strainer
Casted & Welded design Strainer, Element with Mesh – Horizontal & Vertical Position with Flanged End / Butt Weld End / Screwed Ends – 150# to HigherWe supply a range of ACTIVELINE Y - Type Strainers in varying sizes, materials and screen choices. Our principal manufacturer, Also have the capability of designing and manufacturing custom made 'specials' to suit most applications.
ACTIVELINE are increasingly aware of the problem of high differential pressure drops caused by some manufacturers reducing the size of their strainer bodies to save materials and cut costs. For this reason ACTIVELINE manufacture units with generous ratio of filtration area to pipe bore area to prevent flow restriction.
Applications
Based designed for remove foreign matter from pipe lines and provides protection for pumps, meters, valves, and other similar mechanical equipment
Design Features
- Clean liquid, Viscous and Gaseous Media
- Extensive accessories and technical equipment.
- Large filtration area, Compact Size and Weight.
- Extensive Accessories and Technical Equipment.
- Various Surface coating and Special materials
- Quick and easy, with less down time and more run time
Technical
Sizes range:- From ½” (15mm) to 2” (50mm) n.b. for forged units, ½” (15mm) to 14” (350mm) n.b. for cast units and 1” (25mm) to 24” (600mm) for fabricated units.
Pressure ratings:- Available from 125LB to 2500LB
Flange facings:- Wide selection of flange specifications and facings.
Line connections:- Available as screwed, socket-weld, butt-weld and flanged.
Physical Characteristics
- Line size
- Types of piping connections (clamped, bevel seat, I-line, or other)
- Construction materials
- Gasket materials
- Required Particle, Mesh, Hole, or Slot size in the Strainer / Filter element
Design Considerations
- What fluid is being processed?
- Viscosity
- Specific gravity
- Operating temperature and pressure
- Maximum permissible pressure drop
- Percentage of solids
